Research Article

Clinical evaluation of the eye-to-visual-pathway integrity of glaucomatous neurodegeneration using 1.5T MR imaging: The integrity of glaucomatous neurodegeneration

Kaya N Engin*, Ulviye Yiğit#, Sibel Töreyen Bayramoğlu#, Nurten Turan Güner#, Onur Özyurt#, Kutlay Tufan#, Ahmet Ağaçhan# and Penbe Çağatay#

Published: 09 March, 2022 | Volume 6 - Issue 1 | Pages: 001-006

Aim: Accumulating data imply that glaucoma may represent a neurodegenerative disorder affecting the entire visual system. We evaluated retrobulbar glaucomatous damage with favorable techniques for 1.5T diffusion-tensor magnetic resonance imaging and we compared those techniques with clinical data in a large case series.
Material and methods: This Cross-sectional study included 130 eyes of 65 patients with primary open-angle glaucoma. Patients with no known ocular or systemic concomitant disorders, neurological diseases, previous glaucoma surgeries, or antioxidant usage were selected. A decrease in thickness and deterioration in the optic nerve diffusion of severely glaucomatous eyes of patients with asymmetrical involvement was observed in optic nerve tractography. Optical coherence tomography and visual field results of the subjects were recorded. Glaucoma analysis with optical coherence tomography and standard automated perimetry results of the subjects were recorded. Diffusion-tensor magnetic resonance imaging analysis of optic nerves and radiations were performed, computing fractional anisotropy, apparent diffusion coefficient, axial diffusivity, and radial diffusivity. Correlation between the diffusion-tensor magnetic resonance imaging and clinical eye parameters of glaucomatous neurodegeneration were statistically evaluated.
Results: The correlations between diffusion parameters and age were highly significant. Statistically significant correlations were found between ganglion cell complex and apparent diffusion coefficient, axial and radial diffusivities of optic nerves.
Conclusion: Eye-brain connection in glaucoma can be evaluated with routine clinical instruments. Our study also revealed a limited correlation of retrobulbar glaucomatous neurodegeneration with ophthalmic damage. A better understanding of retrobulbar damage will enable us to develop more efficient strategies and a more accurate understanding of glaucoma.

Read Full Article HTML DOI: 10.29328/journal.ijceo.1001042 Cite this Article Read Full Article PDF


  1. Weinreb RN. Glaucoma neuroprotection: What is it? Why is it needed? Can J Ophthalmol. 2007; 42: 396-398.PubMed: https://pubmed.ncbi.nlm.nih.gov/17508033/
  2. Gupta N, Yücel YH. Glaucoma as a neurodegenerative disease. Curr Opin Ophthalmol. 2007; 18: 110-114.PubMed: https://pubmed.ncbi.nlm.nih.gov/17301611/
  3. Gupta N, Yücel YH. Brain changes in glaucoma. Eur J Ophthalmol. 2003; 13: 532-535.PubMed: https://pubmed.ncbi.nlm.nih.gov/12749675/
  4. Gupta N, Ang LC, de Tilly LN, Bidaisee L, Yucel YH. Human glaucoma and neural degeneration in intracranial optic nerve, LGN, and visual cortex. Br J Ophthalmol. 2006; 90: 674-678. PubMed: https://pubmed.ncbi.nlm.nih.gov/16464969/
  5. Duncan RO, Sample PA, Weinreb RN, Bowd C, Zangwill LM. Retinotopic organization of primary visual cortex in glaucoma: Comparing fMRI measurements of cortical function with visual field loss. Prog Retin Eye Res. 2007; 26: 38-56.PubMed: https://pubmed.ncbi.nlm.nih.gov/17126063/
  6. Landers J, Tang KC, Hing S. A visual field abnormality: Ocular or cerebral cause? Clin Experiment Ophthalmol. 2004; 32: 219-222.PubMed: https://pubmed.ncbi.nlm.nih.gov/15068443/
  7. Suziki J, Tamidokoro A, Araie M, Tomita G, Yamagami J, et al. Visual field damage in normal-tension glaucoma patients with or without ischemic changes in cerebral magnetic resonance imaging. Jpn J Ophthalmol. 2004; 48: 340-344.
  8. Nucifora PGP, Verma R, Lee S, Melhem ER. Diffusion-tensor MR imaging and tractography: Exploring brain microstructure and connectivity. Radiology 2007; 245: 367-384. PubMed: https://pubmed.ncbi.nlm.nih.gov/17940300/
  9. Sherenbondy AJ, Dougherty RF, Napel S, Wandell BA. Identifying the human optic radiation using diffusion imaging and fiber tractography. J Vis. 2008; 8: 1-11.PubMed: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC2759943/
  10. Hui ES, Fu QL, So KF, Wu EX. Diffusion tensor MR study of optic nerve degeneration in glaucoma. Conf Proc IEEE Eng Med Biol Soc. 2007; 2007: 4312-4315. PubMed: https://pubmed.ncbi.nlm.nih.gov/18002956/
  11. Garaci FG, Bolachi F, Cerulli A, Melis M, Spano A, et al. Optic nerve and optic radiation neurodegeneration in patients with glaucoma: in vivo analysis with 3-T diffusion-tensor MR imaging. Radiology 2009; 252: 496-501.PubMed: https://pubmed.ncbi.nlm.nih.gov/19435941/
  12. Hood DC, Anderson SC, Wall M, Raza AS, Kardon RH. A test of a linear model of glaucomatous structure–function loss reveals sources of variability in retinal nerve fiber and visual field measurements. Invest Ophthalmol Vis Sci. 2009; 50: 4254-4266. PubMed: https://pubmed.ncbi.nlm.nih.gov/19443710/
  13. Engin KN. Functional and structural evaluation of retrobulbar glaucomateus damage. In: Kubena T, ed. The Mystery of Glaucoma, Rijeka, Croatia: In Tech Inc; 2011; 293-307.
  14. Smith SM, Jenkinson M, Woolrich MW, Beckmann CF, Behrens TE, et al. Advances in functional and structural MR image analysis and implementation as FSL. Neuroimage 2004; 23(Suppl): 208-219. PubMed: https://pubmed.ncbi.nlm.nih.gov/15501092/
  15. Woolrich MW, Jbabdi S, Patenaude B, Chappell M, Makni S, et al. Bayesian analysis of neuroimaging data in FSL. Neuroimage 2009; 45(1 Suppl): 173-186. PubMed: https://pubmed.ncbi.nlm.nih.gov/19059349/
  16. Eickhoff SB, Stephan KE, Molhberg H, Grefkes C, Fink GR, et al. A new SPM toolbox for combining probabilistic cytoarchitectonic maps and functional imaging data. Neuroimage. 2005; 25: 1325-1335. PubMed: https://pubmed.ncbi.nlm.nih.gov/15850749/
  17. Bürgel U, Amunts K, Hoemke L, Mohlberg H, Gilsbach JM, et al. White matter fiber tracts of the human brain: three-dimensional mapping at microscopic resolution, topography and intersubject variability. Neuroimage 2006; 29: 1092-1105. PubMed: https://pubmed.ncbi.nlm.nih.gov/16236527/
  18. Yücel YH, Zhang Q, Weinreb RN, Kaufman PL, Gupta N. Effects of retinal ganglion cell loss on magno-, parvo-, koniocellular pathways in the LGN and visual cortex in glaucoma. Prog Retin Eye Res. 2003; 22: 465-481.PubMed: https://pubmed.ncbi.nlm.nih.gov/12742392/
  19. Hood DC, Anderson SC, Wall M, Kardon RH. Structure versus function in glaucoma: an application of a linear model. Invest Ophthalmol Vis Sci. 2007; 48: 3662-3668. PubMed: https://pubmed.ncbi.nlm.nih.gov/17652736/
  20. Knight OJ, Chang RT, Feuer WJ, Kardon RH. Comparison of retinal nerve fiber layer measurements using time domain and spectral domain optical coherent tomography. Ophthalmology. 2009; 116: 1271-1277. PubMed: https://pubmed.ncbi.nlm.nih.gov/19395086/
  21. Sadun AA, Glaser JS, Bose S. Anatomy of the visual sensory system. In: Tasman W, Jaeger EA, eds. Duane's Ophthalmology. Philadelphia, PA, USA: Lippincott Williams & Wilkins. Chapter 34. 2007.
  22. Stark DD, Bradley WG. Magnetic Resonance Imaging. In: Scott W, ed. Orbit. Missouri, USA: Mosby; 1996; 988-1028.
  23. Kashiwagi K, Okubo T, Tsukahara S. Association of magnetic resonance imaging of anterior optic pathway with glaucomatous visual field damage and optic disc cupping. J Glaucoma 2004; 13: 189-195.PubMed: https://pubmed.ncbi.nlm.nih.gov/15118461/
  24. Lagreze WA, Gaggl M, Weigel M, Schulte-Mönting J, Bühler A, et al. Retrobulbar optic nerve diameter measured by high-speed magnetic resonance imaging as a biomarker for axonal loss in glaucomatous optic atrophy. Invest Ophthalmol Vis Sci. 2009; 50: 4223-4228. PubMed: https://pubmed.ncbi.nlm.nih.gov/19407026/
  25. Ramli NM, Sidek S, Rahman FA, Peyman M, Zahari M, et al. Novel use of 3T MRI in assessment of optic nerve volume in glaucoma. Graefes Arch Clin Exp Ophthalmol. 2014; 252: 995-1000. PubMed: https://pubmed.ncbi.nlm.nih.gov/24770532/
  26. Nucci C, Mancino R, Martucci A, Bolacchi F, Manetti G, et al. 3-T Diffusion tensor imaging of the optic nerve in subjects with glaucoma: correlation with GDx-VCC, HRT-III and Stratus optical coherence tomography findings. Br J Ophthalmol. 2012; 96: 976-980. PubMed: https://pubmed.ncbi.nlm.nih.gov/22628535/
  27. Omodaka K, Murata T, Sato S, Takhashi M, Tatewaki Y, et al. Correlation of Magnetic Resonance Imaging optic nerve parameters to Optical Coherence Tomography and the visual field in glaucoma. Clin Experiment Ophthalmol. 2014; 42: 360-368. PubMed: https://pubmed.ncbi.nlm.nih.gov/24119065/
  28. Chang ST, Xu J, Trinkaus K, Pekmezci M, Arthur SN, et al. Optic nerve diffusion tensor ımaging parameters and their correlation with optic disc topography and disease severity in adult glaucoma patients and controls. J Glaucoma 2013; 23: 513-520. PubMed: https://pubmed.ncbi.nlm.nih.gov/23632406/
  29. Sidek S, Ramli N, Rahmat K, Ramli NM, Abdulrahman F, et al. Glaucoma severity affects diffusion tensor imaging (DTI) parameters of the optic nerve and optic radiation. Eur J Radiol. 2014; 83: 1437-1441. PubMed: https://pubmed.ncbi.nlm.nih.gov/24908588/
  30. Li K, Lu C, Huang Y, Yuan L, Zeng D, et al. Alteration of fractional anisotropy and mean diffusivity in glaucoma: novel results of a meta-analysis of diffusion tensor imaging studies. PloS One. 2014; 9: e97445. PubMed: https://pubmed.ncbi.nlm.nih.gov/24828063/
  31. Engin KN, Yemişci B, Töreyen-Bayramoğlu S, Turan-Güner N, Özyurt O, et al. Structural and functional evaluation of glaucomatous neurodegeneration from eye to visual pathways using 1,5T MRI: A pilot study. J Clin Exp Ophthalmol. 2014; 5: 1000341.
  32. Murai H, Suzuki Y, Kiyosawa M, Tokumaru AM, Ishii K, et al. Positive correlation between the degree of visual field defect and optic radiation damage in glaucoma patients. Jpn J Ophthalmol. 2013; 57: 257-262.
  33. El-Rafei A, Engelhorn T, Wärntges S, Dörfler A, Hornegger J, et al. Glaucoma classification based on visual pathway analysis using diffusion tensor imaging. Magn Reson Imaging. 2013; 31: 1081-1091. PubMed: https://pubmed.ncbi.nlm.nih.gov/23751976/
  34. Zhang YQ, Li J, Xu L, Zhang L, Wang ZC, et al. Anterior visual pathway assessment by magnetic resonance imaging in normal-pressure glaucoma. Acta Ophthalmol. 2012; 90: e295-302. PubMed: https://pubmed.ncbi.nlm.nih.gov/22489916/
  35. Chidlow G, Wood JP, Casson RJ. Pharmacological neuroprotection for glaucoma. Drugs. 2007; 67: 725-759. PubMed: https://pubmed.ncbi.nlm.nih.gov/17385943/


Figure 1

Figure 1

Figure 1

Figure 2

Figure 1

Figure 3

Figure 1

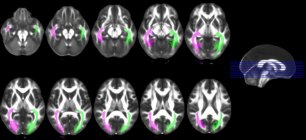

Figure 4
